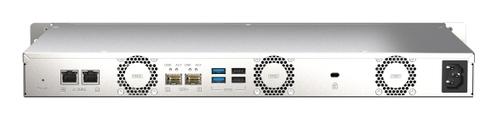

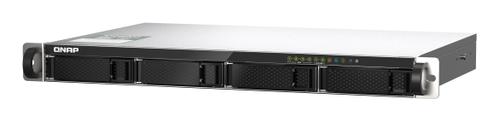

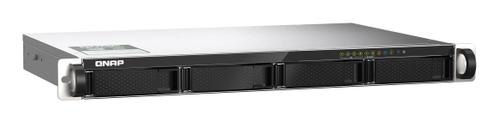

QNAP TS-435XEU-4G 1U 4BAY 2.2GHZ QC 4GB DDR4 2X 10GBE SFP+ 2X 2.5GBE EXT

TS-435XeU-4G

• 2 x 10GbE SFP+ ports
  • Dual-port 10GbE SFP+ connectivity accelerates intensive file access, large backup/restoration tasks, and media transfer.
• 2 x 2.5GbE ports
  • Up to 5 Gbps transfer speeds can be made by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.
• SSD cache acceleration
  • Dual M.2 PCIe Gen 3 NVMe SSD slots enable cache acceleration or SSD storage pools for improved performance.
• Containerized applications
  • Host multiple containerized apps to run a wide range of applications and services.
• Surveillance system
  • Build a surveillance system with lower TCO and higher scalability with the subscription-based QVR Elite smart surveillance solution.
• Flexible storage expansion
  • Scale your storage capacity to fit growing data needs by connecting QNAP’s expansion units.

• Marvell OCTEON TX2™ CN9130 / CN9131 ARMv8 Cortex-A72 4-core 2.2GHz processor

• 64-bit ARM

• Yes

• Yes

• 4 GB SODIMM DDR4 (1 x 4GB)

• 32 GB (1 x 32 GB)

• 1 x SODIMM DDR4

• 4GB (Dual boot OS protection)

• 4 x 3.5-inch SATA 6Gb/s, 3Gb/s

• 3.5-inch bays:
  • 3.5-inch SATA hard disk drives
  • 2.5-inch SATA solid state drives

• Yes

• 2 x M.2 2280 PCIe Gen 3 x1 slots

• Yes

• 2 (2.5G/1G/100M)

• 2 x 10GbE SFP+

• Yes

• Yes

• 2

• 2

• 1U Short Depth Rackmount

• HDD 1-4, Status, LAN, USB, M.2 SSD 1-2

• Power, Reset

• 43.3 × 430 × 292.12 mm

• 4.91 kg

• 5.82 kg

• 0 - 40 °C (32°F - 104°F)

• -20 - 70°C (-4°F - 158°F)

• 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

• 100W PSU, 100-240V

• 17.367 W

• 30.878 W

• 3 x 40mm, 12VDC

• Buzzer

• Yes

• 3

• 1500
