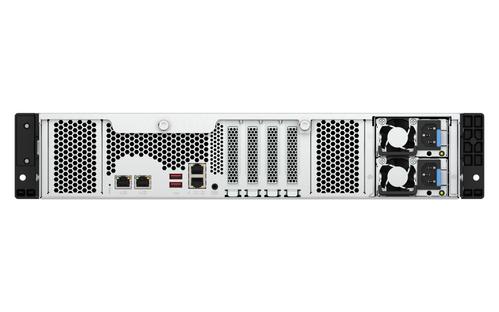

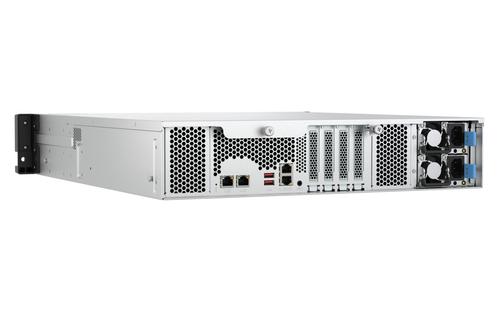

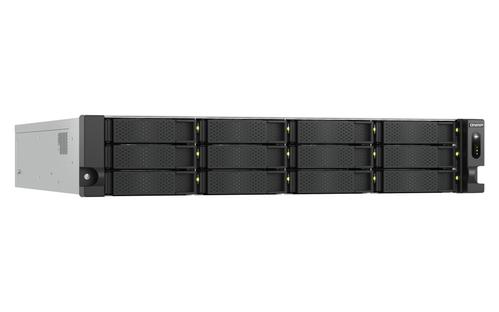

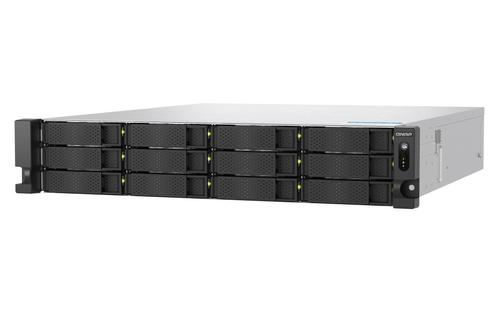

QNAP 2U 12-bay 3.5" SATA HDD NAS AMD Ryzen

TS-h1277AXU-RP Series

• DDR5 RAM
  • Supports up to 192GB high-performance and low power consumption DDR5 RAM for heavy workloads (ECC RAM is also supported).
• Dual M.2 PCIe Gen 5 slots
  • Install M.2 NVMe SSDs for SSD caching acceleration. PCIe Gen 5 is backward compatible with PCIe Gen 4 / PCIe Gen 3 for flexible deployment.
• 2.5GbE and 10GbE as standard
  • Two 2.5GbE and two 10GbE ports accelerate virtualization, storage centers, and large file transfer.
• PCIe Gen 4 expandability
  • Three PCIe Gen 4 slots provide diverse expandability by installing 25GbE cards, SAS storage expansion cards, or Fibre Channel cards.
• Petabyte-scale storage
  • Connect up to eight 24-bay TL-R2400PES-RP JBODs to attain PB-level storage capacity of 204 disks.
• Long-term supply
  • The TS-h1277AXU-RP will be available and supported by QNAP for an extended period, up to 2030.

• AMD Ryzen™ 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz
• AMD Ryzen™ 5 7000 series 6-core/12-thread processor, burst up to 5.1 GHz

• 64-bit x86

• AMD Radeon™ Graphics

• Yes

• Yes (AES-NI)

• Yes

• 32 GB UDIMM DDR5 (1x 32 GB)
• 16 GB UDIMM DDR5 (1x 16 GB)

• 192 GB (4 x 48 GB)

• 4 x UDIMM DDR5
• Support optional ECC memory

• 5GB (Dual boot OS protection)

• 12 x 3.5-inch SATA 6Gb/s, 3Gb/s

• 3.5-inch SATA hard disk drives
• 2.5-inch SATA solid state drives

• Yes (Not supported M.2 SSD)

• 2 x M.2 2280 PCIe Gen 5 x2 slots

• Yes

• Yes

• 2 (2.5G/1G/100M/10M)

• 2 x 10GBASE-T (10G/5G/2.5G/1G/100M)

• Yes

• Yes

• Slot 1: Gen 4 x 4
• Slot 2: Gen 4 x 8 or Gen 4 x 4
• Slot 3: Gen 4 x 4

• 2 x Type-A USB 3.2 Gen 2 10Gbps

• 2U Rackmount

• Power Status, HDD 1-12, M.2 SSD 1-2, Status, LAN, storage expansion port status

• Power, Reset

• 88.6 × 482 × 550 mm

• 13 kg

• 19 kg

• 0 - 40 °C (32°F - 104°F)

• -20 - 70°C (-4°F - 158°F)

• 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

• 550W(x2), 100-240V

• 82.247

• 367.65 W

• System fan: 3 x 60mm, 12VDC

• Buzzer

• 5

• 5000
