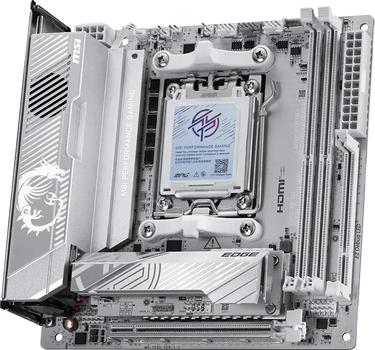

MPG X870I EDGE TI EVO WIFI Features: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors Supports DDR5 Memory, Dual Channel DDR5 10000+ MT/s (OC) Ultra Performance: 8+2+1 Duet Rail Power System, Core Boost, Memory Boost, 12-layer PCB made by 1oz thickened copper and server-grade level material Frozr Guard: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience EZ DIY: EZ Antenna, EZ Conn-Design and EZ Front Panel Cable Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2 Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience Specifications: Chipset AMD X870 CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 Memory 2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 10000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8400+ MT/s 1DPC 2R Max speed up to 8000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only Onboard Graphics 1x HDMI™ Support HDMITM 2.1 with TMDS port, supporting a maximum resolution of 4K 60Hz 2x Type-C DisplayPort Slot 1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E1 slot (From CPU) Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) 1x FP card slot Supports the installation of MSI 5-in-1 XPANDER card only. Audio Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output Storage 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 2x SATA 6G M.2_1 slot (From CPU) Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot (From X870 chipset) Supports up to PCIe 4.0 x4 Supports 2260/2280 storage devices Supports single sieded M.2 SSD only 5-in-1 XPANDER Card M.2_3 slot (From X870 chipset) Supports up to PCIe 4.0 x4 Supports 2260/2280 storage devices Supports single sided M.2 SSD only RAID Supports RAID 0, and RAID 1 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices USB 2x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 5x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) LAN 1x Realtek® 8126 5G LAN Internal IO 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports WIRELESS LAN & BLUETOOTH Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4, MLO, 4KQAM LED FEATURE 4x EZ Debug LED BACK PANEL PORTS USB 10Gbps Type-A Clear CMOS Button USB 10Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ USB 40Gbps Type-C Flash BIOS Button USB 10Gbps Type-C Optical S/PDIF Out OPERATING SYSTEM Support for Windows® 11 64-bit PCB Info Mini-ITX 170mmx170mm
