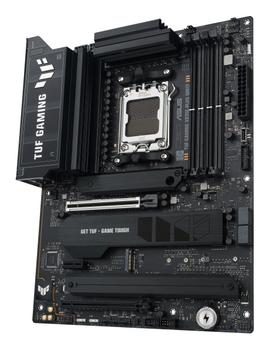

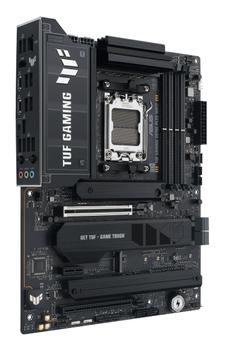

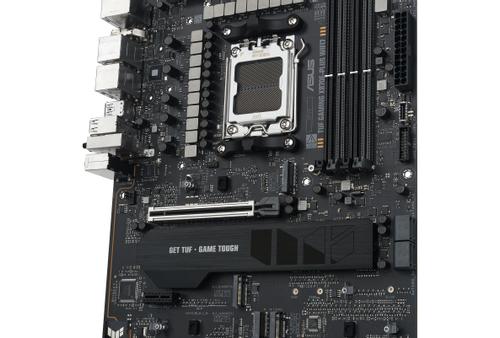

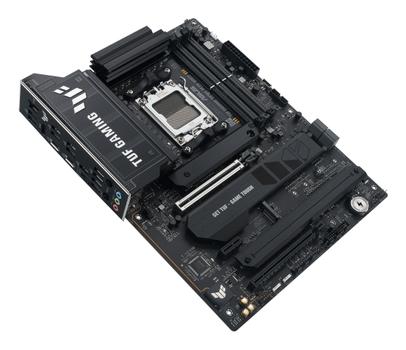

ASUS TUF GAMING X870E-PLUS WIFI7 - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU

TUF GAMING X870E-PLUS WIFI7

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

• AMD X870E Chipset

• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
• Dual channel memory architecture
• DIMM Fit
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)

• 1 x HDMI™ port
• 2 x USB4® (40Gbps) ports support USB Type-C® display outputs

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot
• AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• AMD X870E Chipset
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 3.0 x1 Slot

• Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot is not supported
• AMD X870 Chipset
  • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
• AMD RAIDXpert2 Technology
  • Ryzen™ 9000 Series Processors: RAID 0/1/5/10
  • Ryzen™ 8000 Series Processors: RAID 0/1
  • Ryzen™ 7000 Series Processors: RAID 0/1/10

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
• Bluetooth® v5.4

• Rear USB (Total 13 ports)
  • 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
  • 3 x USB 10Gbps ports (3 x Type-A)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 7 ports)
  • 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
  • Impedance sense for front and rear headphone outputs
  • Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • Supports up to 32-Bit/192 kHz playback
• Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • Audio cover
  • Unique de-pop circuit

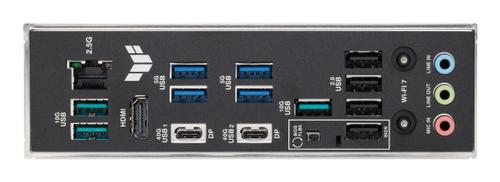

• 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
• 3 x USB 10Gbps ports (3 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button

• Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
• Power Related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V CPU Power connectors
• Storage Related
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Clear CMOS header
  • 1 x Chassis Intrusion header
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x 10-1 pin Front System Panel header
  • 1 x Thermal Sensor header

• ASUS TUF PROTECTION
  • DIGI+ VRM (Digital power design with SPS)
  • ESD Guards
  • TUF LANGuard
  • Overvoltage protection
  • SafeSlot

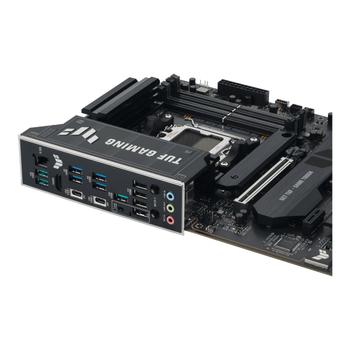

  • Stainless-steel back I/O
• ASUS Q-Design
  • M.2 Q-Latch
  • Q-Release Slim (with PCIe SafeSlot)
  • Q-Antenna
  • Q-Dashboard
  • Q-DIMM
  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • Q-Slot
• ASUS Thermal Solution
  • M.2 heatsinks
  • VRM heatsink design
• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • ProCool
  • Pre-mounted I/O shield
  • SafeDIMM
• Aura Sync Addressable Gen 2 headers
• Front Panel USB 20Gbps with PD Fast Charge Support
  • Support: up to 30W fast charging and USB Wattage Watcher
  • Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A
  • Compatible with PD3.0

• ASUS Exclusive Software
  • Armoury Crate
    • Aura Creator
    • Aura Sync
    • Fan Xpert 4 (with AI Cooling II)
  • ASUS AI Advisor
  • ASUS DriverHub
  • ASUS GlideX
  • USB Wattage Watcher
  • TurboV Core
  • TUF GAMING CPU-Z
  • DTS Audio Processing
  • Norton 360 for Gamers (60 Days Free Trial)
  • WinRAR (40 Days Free Trial)
• UEFI BIOS
  • AI Overclocking Guide
  • ASUS EZ DIY
    • ASUS CrashFree BIOS 3
    • ASUS EZ Flash 3
    • ASUS UEFI BIOS EZ Mode
    • ASUS MyHotkey

• 256 Mb Flash ROM, UEFI AMI BIOS

• WOL by PME, PXE

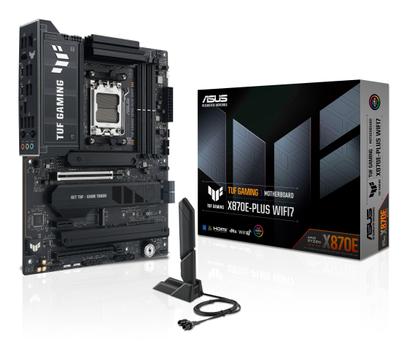

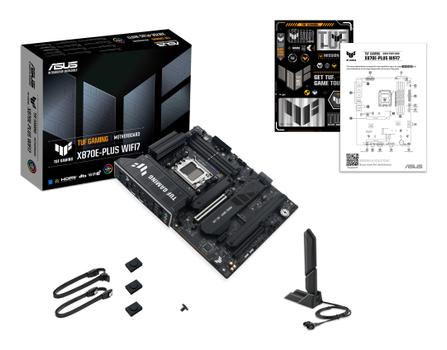

• Cables 2 x SATA 6Gb/s cables
• Miscellaneous
  • 1 x ASUS WiFi Q-Antenna
  • 2 x M.2 rubber packages
  • 1 x Screw package for M.2 SSD
  • 1 x TUF GAMING sticker
• Documentation 1 x Quick start guide

• Windows 11

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
