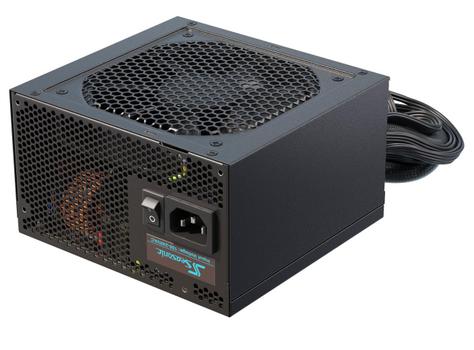

SEASONIC G12 GM-850 - 850W Strømforsyning

G12 GM 850W

• 80 PLUS® Gold certified
• Semi-modular cables
• Tight Voltage Regulation
• S2FC - Smart and Silent Fan Control
• 5 years warranty

• 80PLUS® Gold
• Cybenetics Efficiency Level TBA
• Cybenetics Noise Level TBA
• Form Factor Intel ATX 12 V
• Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
• Fan Information
  • Fan Size 120 mm
  • Fan Control Smart and Silent Fan Control
  • Fan Bearing Sleeve Bearing
  • Life Expectancy 25,000 hours at 40 °C, 15 % - 65 % RH
• Cable Information
  • Modularity Fixed cables
  • Cable type Flat black cables
• Electrical Features
  • Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
  • MTBF @ 25 °C, excl. fan 100,000 hours
  • AC Input Full Range
  • Protection OPP, OVP, OCP, SCP
• Safety and Environmental
  • Safety and EMC cTUVus, TUV, CB, CCC, BSMI, CE, FCC
  • Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Warranty 5 Years

• AC Input
  • Voltage: 100 V - 240 V
  • Current: 10 A Max.
  • Frequency: 50 Hz - 60 Hz
• DC Output
  • Rail/Maximum Power
    • +3.3 V 20A
    • +5 V 20A
    • +12 V 70A (840W)
    • -12 V 0.3A
    • +5 VSB 2.5A
  • Total continuous power 850 W
