DELOCK USB Adapter USB -> 4x D-Sub9 (RS422/485) Bu
|
|
DELOCK USB Adapter USB -> 4x D-Sub9 (RS422/485) Bu
-
Porte/kontakter
Seriel
-
Eksterne porte
Ja
-
Tilslutning
USB
-
Interne porte
Nej
-
RAID
Nej
Leveringstider v. forsendelse:
Butiklager: Lev.tid: 1-2 dage
Fjernlager: Lev.tid: 1-3 dage
✅ Varer på butiklager kan også afhentes i vores butik i Roskilde. Mere info
.
.
|
Beskrivelse
Specifikationer

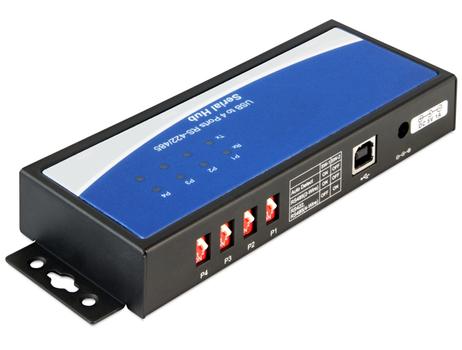

Delock Adapter USB 2.0 to 4 x serial RS-422/485
This USB 2.0 to serial adapter enables you to connect up to four different serial devices to a free USB port.
• Chipset: FT4232HL, SP3078EE
• Connector: USB 2.0-B female to 4 x 9 pin serial RS-422/485 male
• 4 x DIP switch: RS-422/485 operation setting
• Internal pin header: Jumper switch terminator on / off
• Serial male connector with screw nuts
• Data transfer rate up to 1 Mb/s
• LED for indication of TxD / RxD activity
• Automatical recognition and switching between RS-422 and RS-485
• ±15KV ESD protection on all signal pins
• Wall mounting integrated in the housing
• Power consumption:
operation: ≤ 143 mA / 715 mW
standby: 92 mA / 460 mW
• Additional I/O and IRQ are not required
• Dimension: 172 x 65 x 23 (LxWxH)
| Stik 1 | 4 x RS-422/485 |
| Stik 2 | USB 2.0 |
| Stik køn | Hanstik/Hunstik |
| Farve på produkt | Sort |
| Kompatible operativsystemer | Windows XP/Vista/Vista-64/7/7-64, Linux 2.6 |
| Bredde | 172 mm |
| Dybde | 65 mm |
| Højde | 23 mm |
