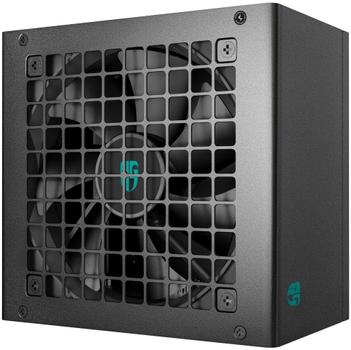

DEEPCOOL PN850-M Strømforsyning - 850 Watt - 120 mm - ATX 3.1 - 80 Plus Gold

PN850M

• FUTURE PROOF
  • With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN850M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
• GRACEFUL GOLD
  • 80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.
• POWER YOU CAN TRUST
  • Through the use of a main Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN850M can keep the hold-up time to = 16 ms under a high load of 80%.
• PCI-E 5.1 POWER
  • Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2x6 cable, the PN850M provides up to 600W for modern GPUs.
• SLEEVED CABLES
  • The PN850M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.
• DYNAMIC FDB FAN
  • The PN850M comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the PSU.
• HIGH QUALITY BUILD
  • Due to the high quality of the parts utilized, the PN850M will operate at altitudes up to 5000 meters above sea level.
• PEACE OF MIND
  • The PN850M comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
• EXCELLENT COVERAGE
  • The PN850M is engineered and manufactured at such a high level that is offering a lengthy 10 years of trouble-free limited warranty coverage.

• ATX12V V3.1

• 150×140×86mm (W x L x H)

• 80Plus Gold

• 120mm

• FDB (Fluid Dynamic Bearing)

• Active PFC + Full Bridge SRC LLC + DC to DC

• Japanese Bulk Capacitor

• 100-150ms

• =16ms(80% Load)

• =90% Under Typical Load(50% Loading)

• OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

• 0 - 40?

• CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH

• ErP 2014

• WEEE/?? RoHS/Triman/P65

• 100,000 Hours
