ATEN RS-232/RS-485 interface cnvert
|
|
ATEN RS-232/RS-485 interface cnvert
-
Porte/kontakter
Seriel
-
Eksterne porte
Ja
-
Tilslutning
Seriel
-
Interne porte
Nej
-
RAID
Nej
Leveringstider v. forsendelse:
Butiklager: Lev.tid: 1-2 dage
Fjernlager: Lev.tid: 1-3 dage
✅ Varer på butiklager kan også afhentes i vores butik i Roskilde. Mere info
.
.
|
Beskrivelse
Specifikationer

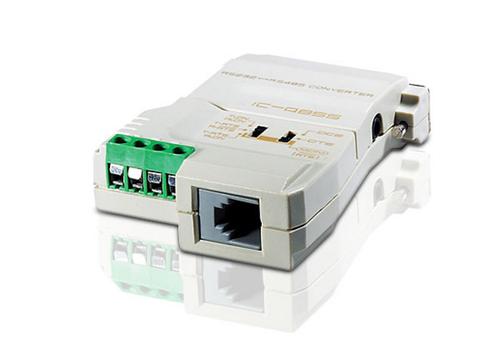

RS-232/RS-485 Interface Converter
IC485S is a 2-way converter for converting RS-232 signals to and from RS-422/RS-485 signals in long-distance application up to 1200m (4000 ft.). It supports the connection of up to 32 hubs.
- Data transmission controlled by the RTS signal.
- DCE/DTE selectable.
- Point to point, multidrop, and simplex/duplex link selection.
- Four wire full duplex; two wire half duplex.
- Compact size.
- Cable distance of up to 1200m (4000 ft.).
- Monitor configuration support.
- Supports baud rates up to 115.2kbps.
- OS Support: Windows 2000, Windows XP
| Produktfarve | Hvid |
| Bredde | 54,5 mm |
| Højde | 79 mm |
| Dybde | 21 mm |
| Vægt | 50 g |
