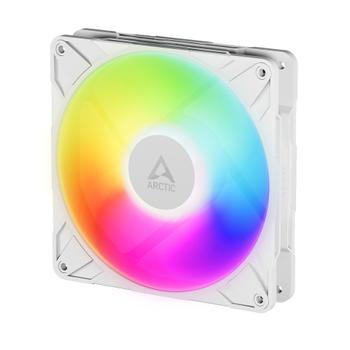

ARCTIC COOLING ARCTIC P14 Pro A-RGB (White) Fan 140mm 3-Pack

P14 Pro A-RGB (White) - 3 Pack 140 mm A-RGB PWM Fan with Cable Splitter

• Efficient Performance at High Air Resistance
  • Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.
• Maximum Performance, Redefined
  • Revised fan blade design for an optimal balance of performance and smooth operation.
• Optimized Bearing-Shaft Design (FDB)
  • A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
• Automated Two-Plane Balancing
  • An automated two-level measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing mass with pinpoint accuracy at two different depth levels.
• SOTA Microcontroller
  • Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
• More Power – Less Noise
  • The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.
• Minimum Gap Dimensions for Maximum Efficiency
  • Enables higher static pressure and maximum airflow efficiency.
• PST – PWM-Based Synchronized Fan Control
  • An additional PWM connector allows multiple fans to be synchronized in series using a single header.

• Warranty 6 Years
• Operating Ambient Temperature 0–40 °C
• Dimensions 140 (L) x 140 (W) x 27 (H) mm
• Net Weight 237 g

• Fan Speed 400–2500 rpm, PWM controlled, 0 rpm below 5 % PWM
• Airflow 110 cfm | 186 m³/h
• Static Pressure 5.2 mmH2O
• Fan Bearing Fluid Dynamic Bearing
• Typical Voltage 12 V DC
• Start Up Voltage 5 V DC
• Current 0.35 A
• Cable Length 400 mm + 80 mm Daisy-Chain Cable
• Connector 4-Pin Fan Plug + 4-Pin Socket

• LEDs 12x A-RGB Gen2 LEDs
• Current | Voltage 0.40 A | 5 V DC
• Connector 3-Pin A-RGB Plug + 3-Pin Socket
